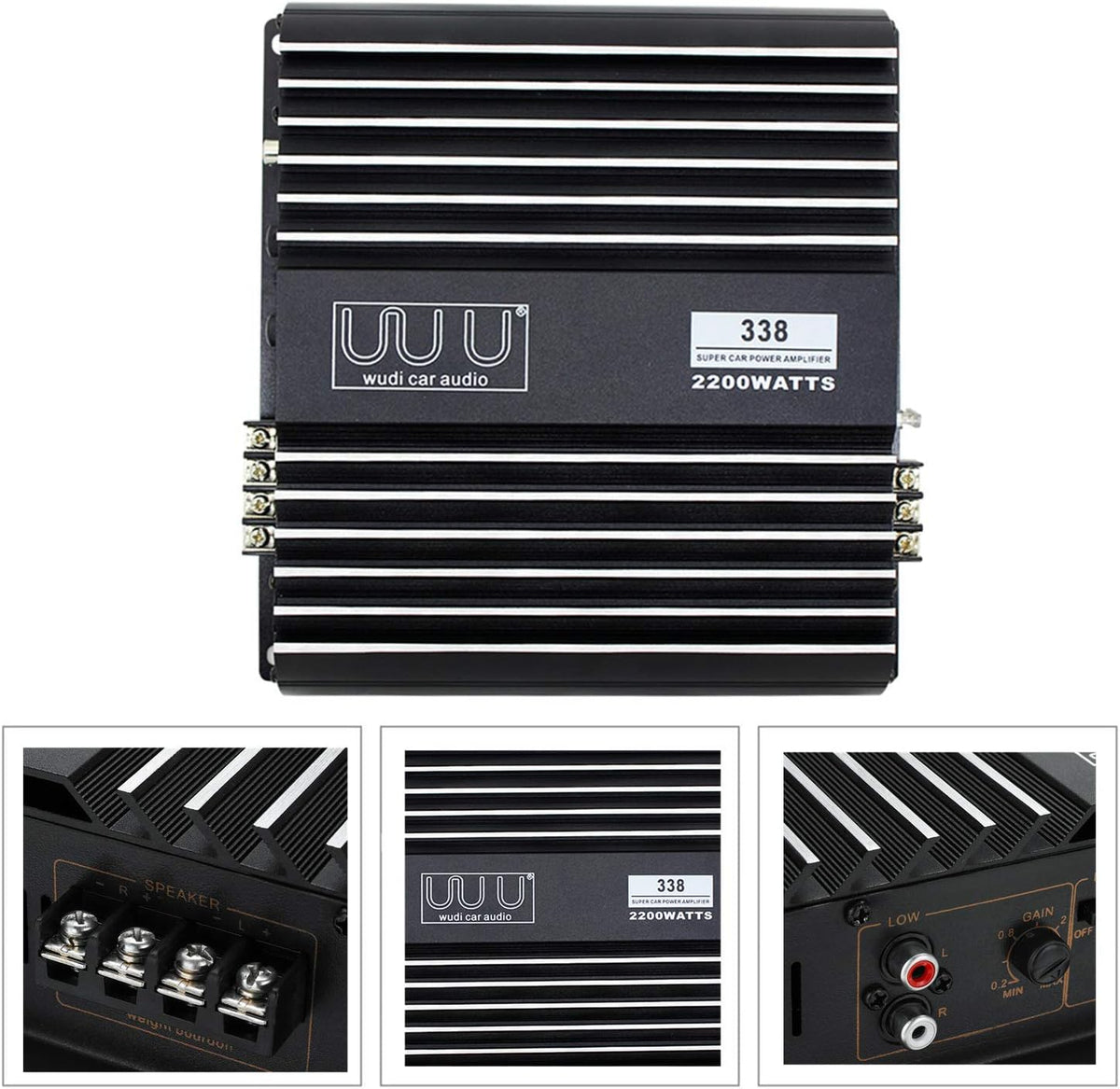

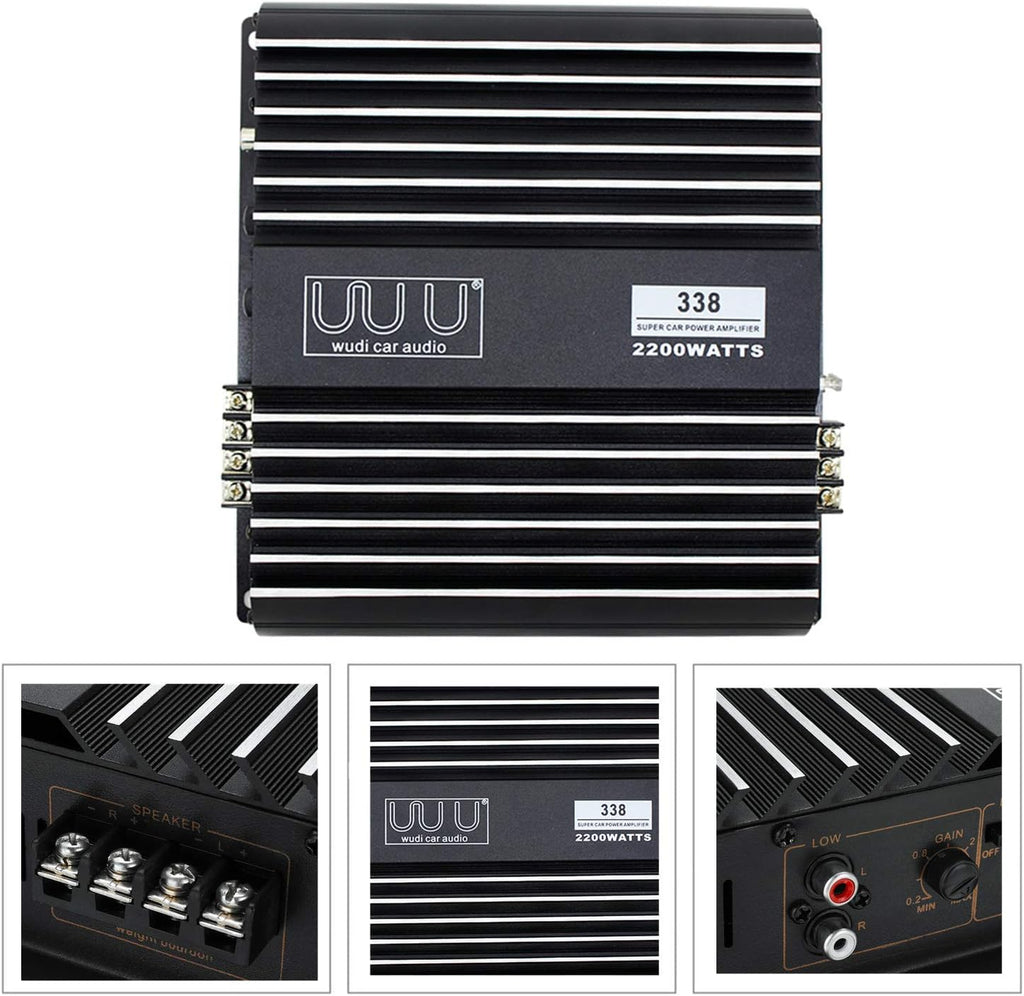

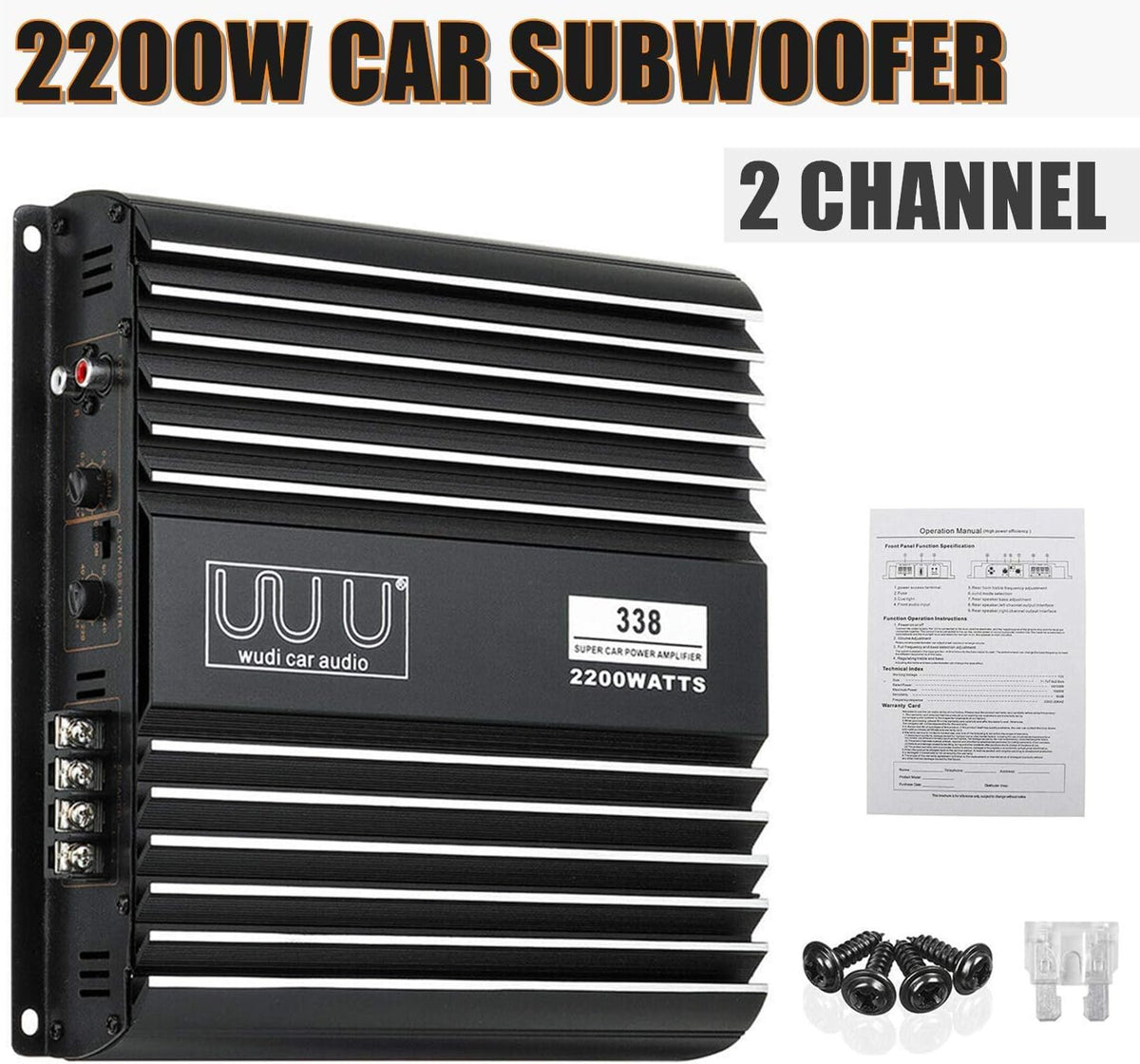

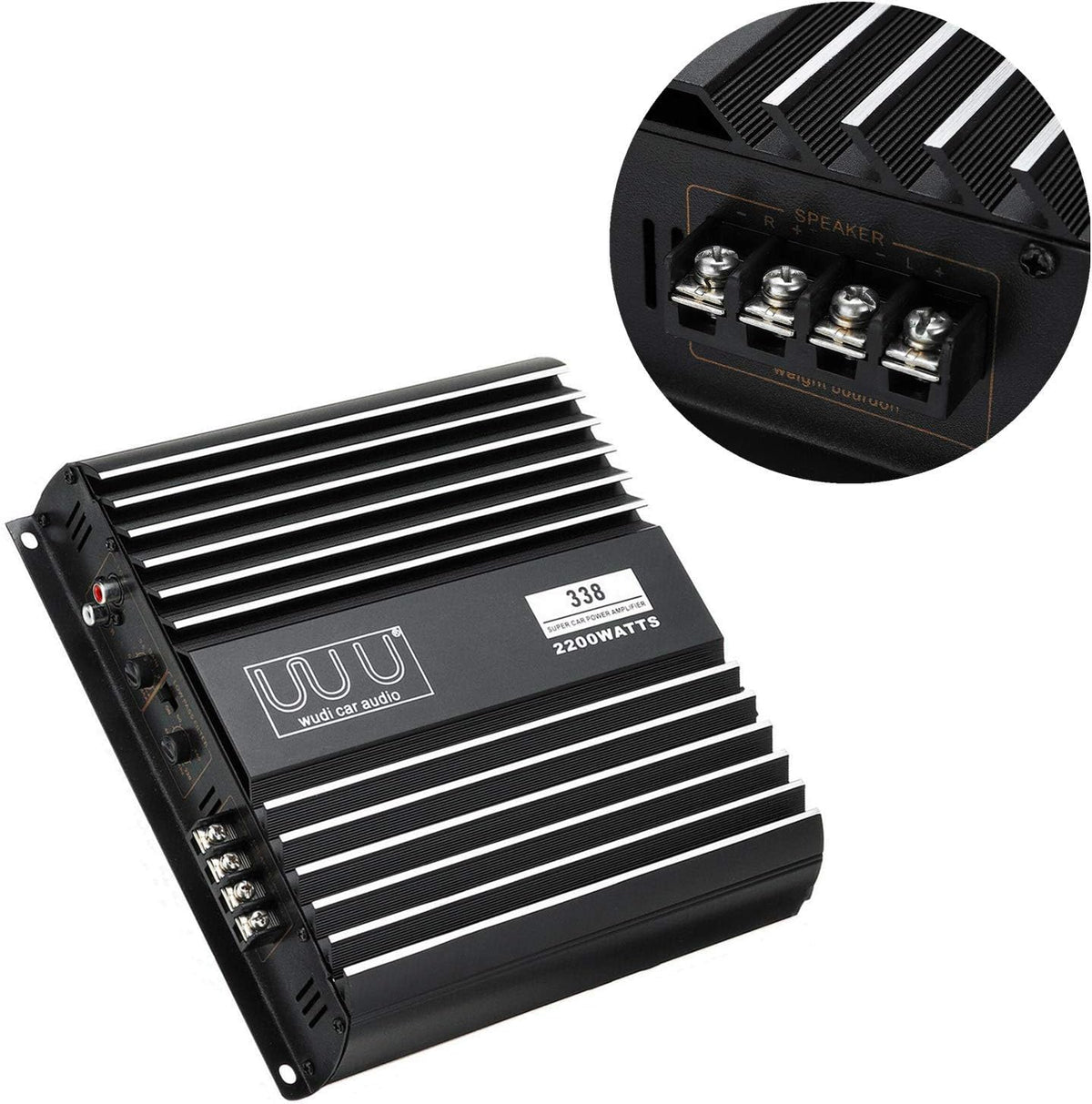

2 Channel 2200W Car Audio Amplifier V619921
2 Channel 2200W Car Audio Amplifier V619921
Nondestructive amplifier installation, 360°round sound.
Car Audio Amplifier 338 is made of high quality aluminum and durable material.
Current /Amperage overload, short circuits protection.Thermal overload,DC Offset.
Energetic, strong power, easy to promote subwoofer.
Specifications:
Material: Lightweight Aluminum
Voltage: 12V
Power: 2200W
Rated Power: 4x100W
Maximum Power: 1000W

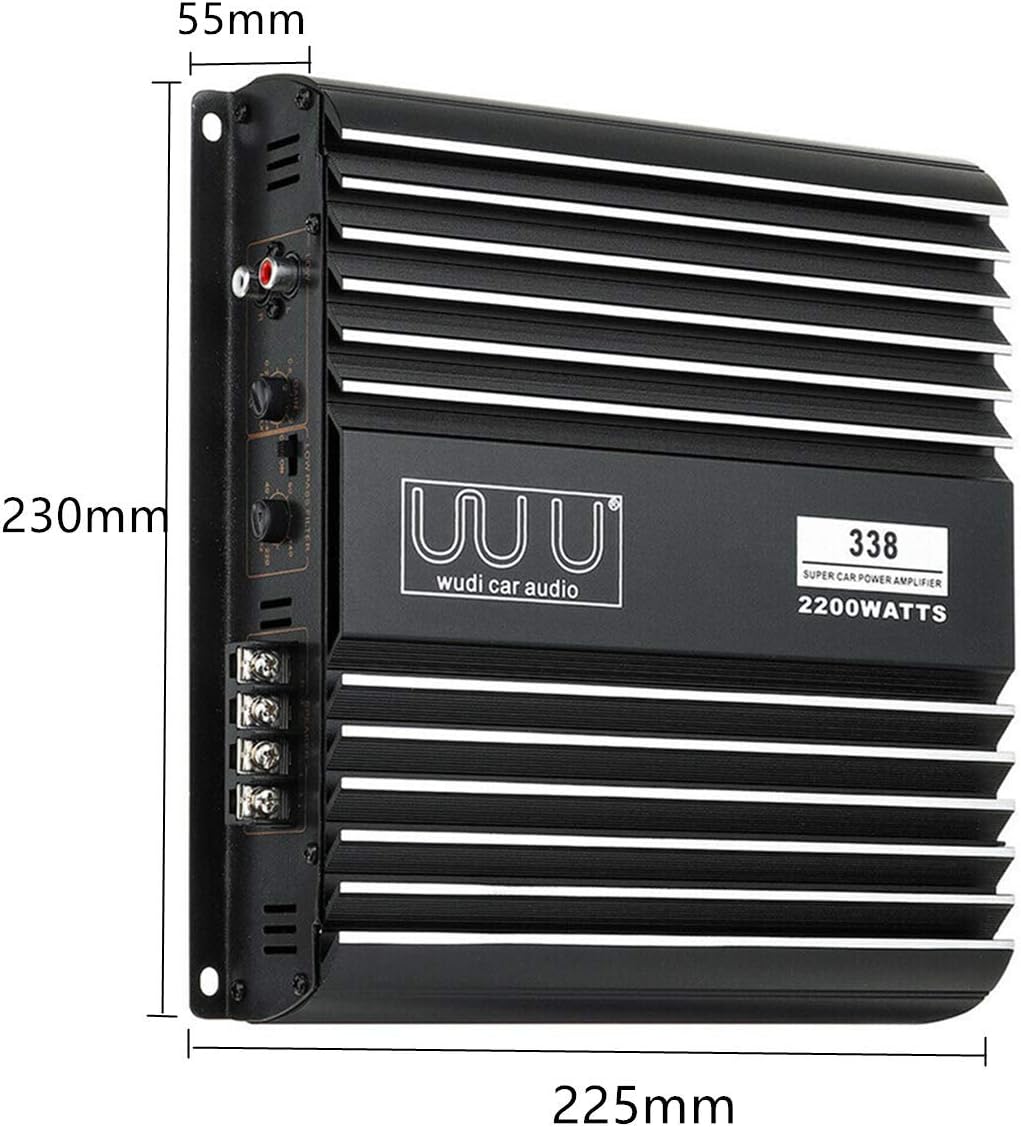

Dimensions: 23cm x 22.5cm x 5.5cm(LXWXH)
Sensibility: 90dB
Frequency response: 20Hz-20KHz
Primary Color: Black

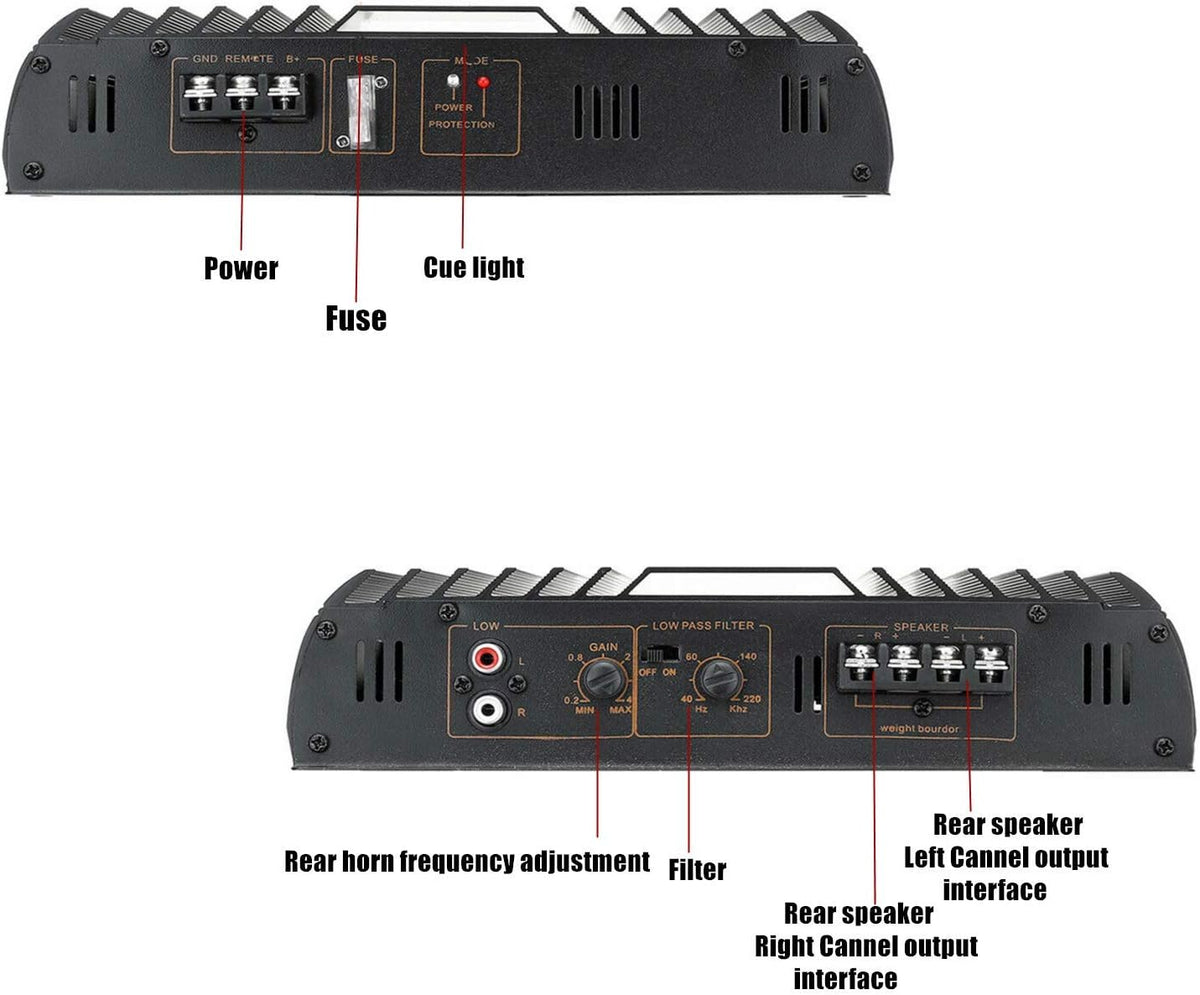

Function Operation Instructions:
1.Power on off
Connect the power supply , the 12V is connected to the level positive electrode, and the negative pole of the ground wire and the level are connected together.
The control line connected to the car key control power of suound subwoofer control liine. The machine is seitched on automatically and blue light is on , and when this red light is oon , the speaker is short circuited.
2. Volume Adjust
Rotary volume potentiometar can adjust small volume or eniarge volume.
3.Full frequency and bass selection adjstment
The switch is plasced in the bass position , At this time only the bass output is used, The potentiometer can change the bass frequency to meet the different requirements of the bass.
4.Regulating treble and bass
Adjusting the treble and bass potentiometer can change the bass

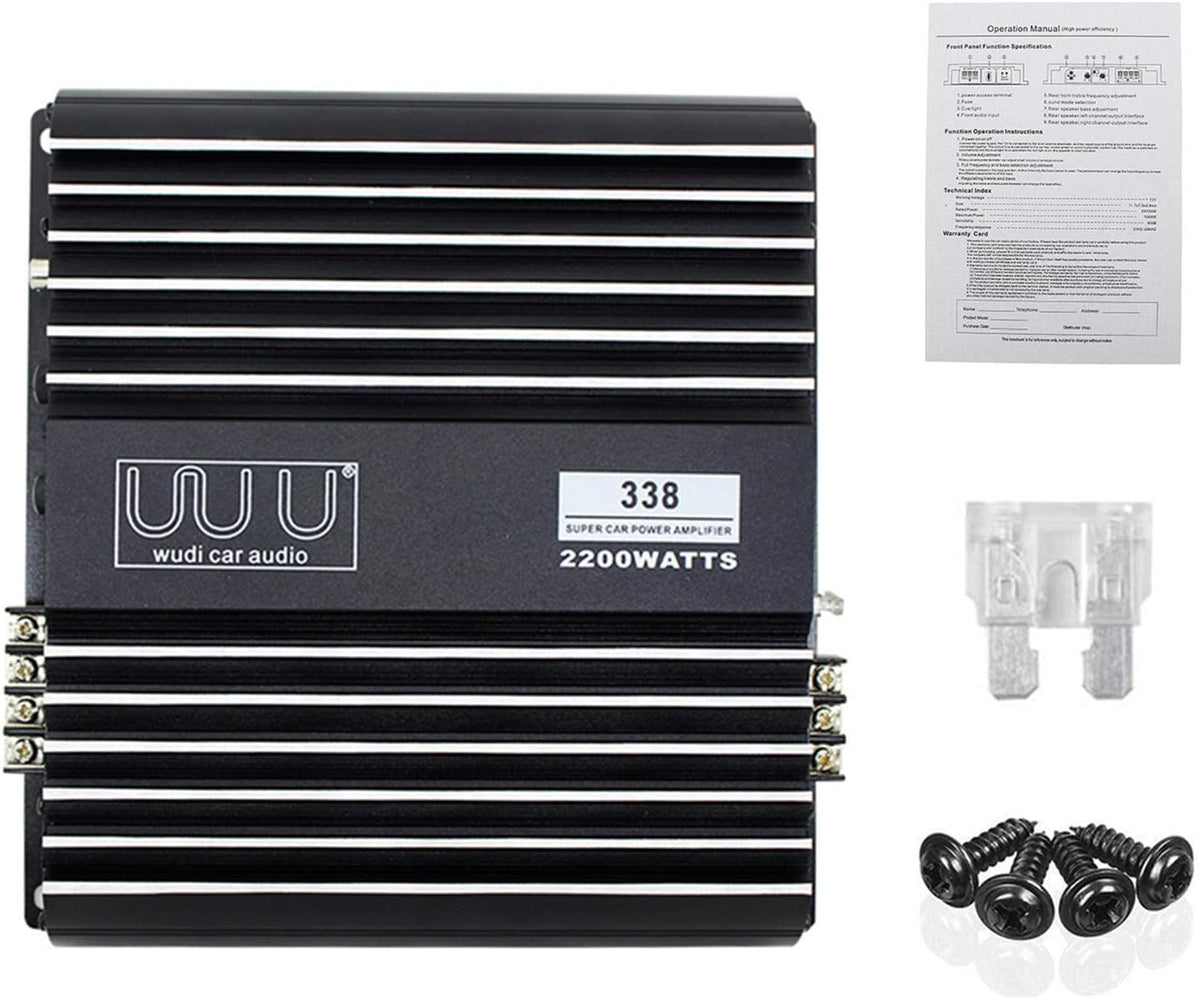

Package Included:
1 x 2 Channel Car Amplifier
1 x Screw Kits
1 x User’s Manual
